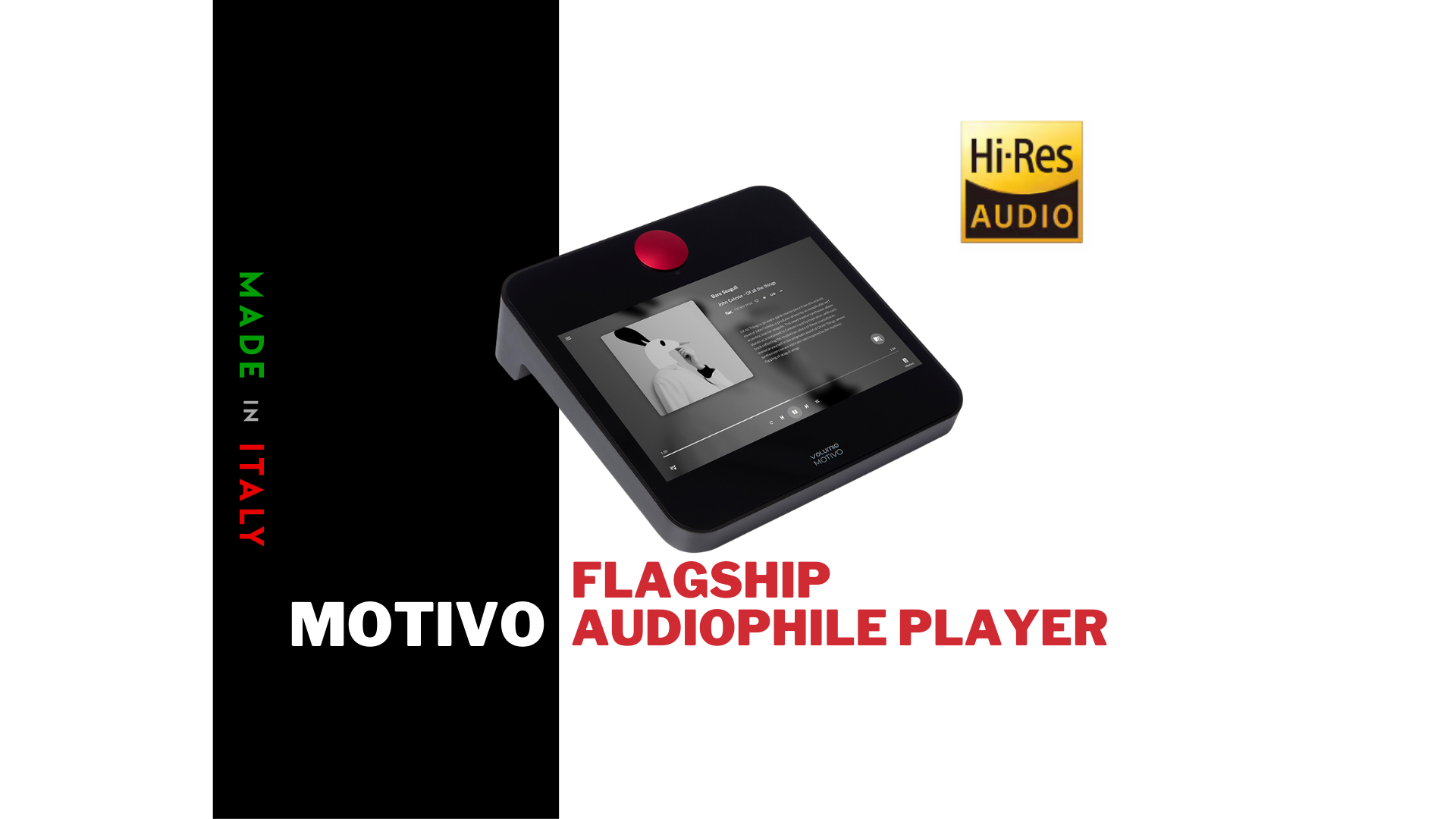

Volumio MOTIVO

Analog Balanced and Unbalanced Output

• RCA: 2V RMS up to PCM 384kHz/24bit and DSD256
• XLR: 4V RMS up to PCM 384kHz/24bit and DSD256

USB DAC Port

• USB Audio Output: up to PCM 768kHz/32 bit and DSD256 (USB DAC required)

Coaxial and Optical S/PDIF

• Digital Output: up to PCM 192kHz/24 bit

Headphones

• Stereo Headphone Amplifier, dual output optimized for High and Low impedance Headphones: up to PCM 384kHz/24bit and DSD256

I2S over HDMI Output

• Digital Output: up to PCM 384kHz/24bit and DSD256



USB DAC Port

• 2x USB 2.0 current up to 900mA per port

LAN

• Gigabit 10/100/1000M

Wireless

• Wi-Fi 802.11a/b/g/n/ac (2.4G and 5G)

Bluetooth

• 5.0



Supported Formats

• DSD, WAV, FLAC, Alac, Aac, Vorbis, Cue, Mp3 and others

UPNP DLNA

• Renderer with Open Home support

Supported Services

• Airplay via Shairport Sync, Spotify & Spotify Connect, TIDAL & TIDAL Connect, QOBUZ

Available Plugins

• Youtube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, Soundcloud, Mixcloud

CPU

• Broadcom BCM2711, Quad Core 1.5 GHz

RAM

• 2 GB DDR4

Internal Storage

• 16 GB EMMC

Power Supply

• 9V, 4A



Weight

• 2.5 kg

Dimensions

• 19.5x19.5x5.5 cm
