BLUESOUND NODE [N130] PSU MODIFICATION GUIDE
A complete PSU modification guide for latest Node [N130]
Own an older Node 2/2i? We have the complete modification guide for it too! Here you go: link

Video Guide​
DISCLAIMER
-
Modifications void the product warranty.
-
Please do not attempt to modify the unit if you're not comfortable in electronics modification works

Tools Required
-

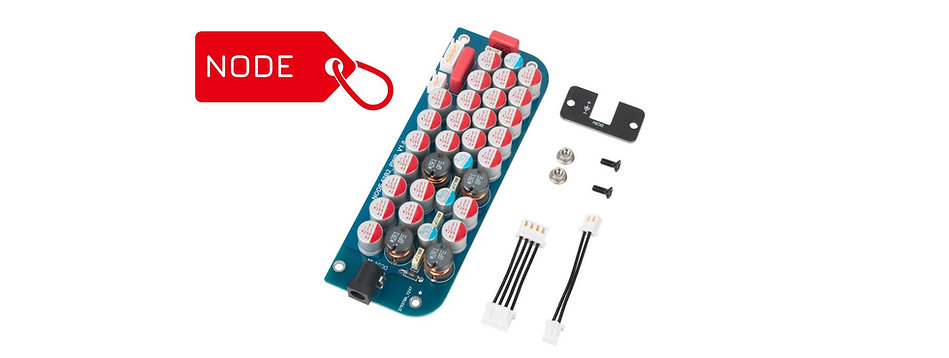

LHY Audio Node [130] PSU Kit
-
Phillips Screwdriver
-
Long-nose Plyer
Step 1: Use a small flat screwdriver / finger nail to pull the Rear Metal Panel out from the chassis. It is magnetic, a pretty nice design.

Step 2: Loosen the two screws. These screws are securing the Top Cover

Step 3: Lift the Top Cover gently with a bit of force to dismantle it. Please be mindful that there are cables attached to the Top Cover and Motherboad. Please do not pull them apart.

Step 4: Disconnect the two connectors on the mainboard


Step 5: Use a + Phillips Screwdriver to remove the two screws securing the SMPS module

Step 6: Remove the two screws holding the SMPS, and a screw at the rear panel holding the bracket, as well as two screws holding the AC inlet



Step 7: Place the bracket and 7 screws safely aside, we need them later.

Step 8: Dismantle the SMPS from the chassis

Step 9: Locate the Back Panel of the PSU Kit, fit it to the PSU module


Step 10: Install the PSU module to the chassis, align it properly to the screw holes

Step 11: Use the two sets of screws & nuts provided in the PSU Kit to secure the Back Panel and Bluesound chassis wit the help of screwdriver & plyer


Step 12: Tighten the two screws to secure the PSU module

Step 13: Tighten the two screws to secure the PSU module and Bracket

Step 14: Tighten a screw at the rear panel to secure the bracket and the chassis

Step 15: Use the provided high quality jumper cables, connect it to the PSU module firmly

Step 16: Connect the other end of the jumper to the Bluesound mainboard socket firmly

Step 17: Assemble the Top Cover and Real Metal Panel back to the chassis carefully.
It's done. You have successfully installed the LHY Bluesound PSU Kit to the Bluesound Node :)

FAQ
-
Q1: Can I use the stock power cord that come with the NODE to power up the NODE after the modification?
-
A1: No, you need a 5VDC Power Supply with DC Cable (5.5/2.1mm) to power up the NODE.
​
-
Q2: Which 5VDC Power Supply can I use?
-
A2: You may use LHY Audio LPS25VA/5V Linear Power Supply.
​
​
-
Q3: The PSU Kit cost US$119/279. What is the different?
-
A3: The PSU Kit itself cost $119, it doesn't include the LHY Audio LPS25VA. You may opt for PSU Kit + LPS25VA Bundle at $279
